Pasi Opus 4
TRINITY LUTHERAN CHURCH
Trinity Lutheran Church
Lynnwood, WA
II/P, 29 Stops
1995
Specification
Great
16' Principal
8' Octave
8' Salicional
8' Rohrflöte
4' Octave
4' Spitzflöte
3' Quint
2' Superoctave
1 3/5' Terz
1 1/3' Mixtur IV
8' Trompete
Swell
16' Violon m.c.
8' Gamba
8' Celeste t.c.
8' Bourdon
4' Principal
4' Rohrflöte
3' Nasard
2' Waldflöte
1 3/5' Tierce
1' Mixtur III
16' Dulcian
8' Oboe
Pedal
16' Principal*
16' Subbass
8' Octave*
4' Octave
16' Posaune
8' Trompete*
(*) Transmission from Great
Swell to Great
Great to Pedal
Swell to Pedal
Wind system with one wedge-shaped bellows fed by a silent blower.
Temperament: Kellner.
Mechanical key action, suspended, self-compensating for seasonal changes.
Mechanical stop action.
Normal couplers. 58 note keyboards and 30 note pedalboard.
Pipes made of a 97% lead-tin alloy.

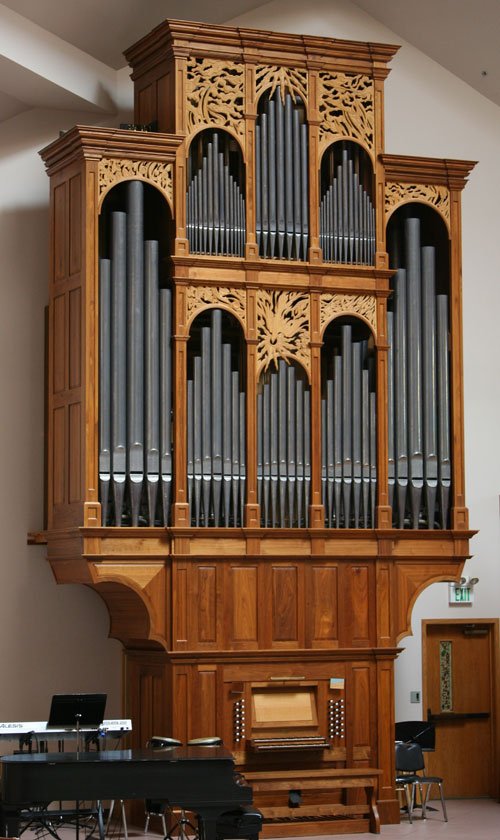

Free-standing case of solid black walnut in mortise and tenon construction.
For maximum tuning stability, open pipes are trimmed to exact length and cone tuned, the stopped pipes being provided with soldered-on caps.
Weight of the instrument: approximately 8 tons.
